PeelCapure – Device: Touch OSC

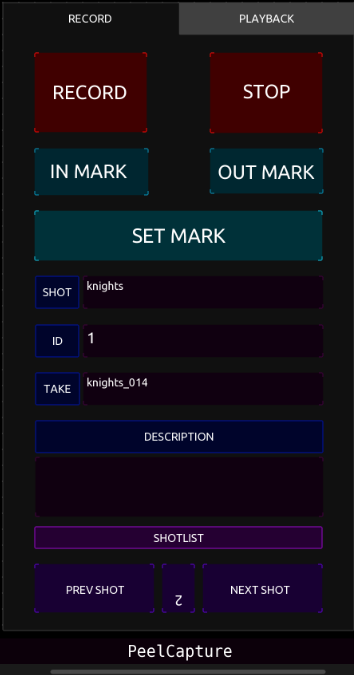

A template Touch OSC Device can be downloaded from here.

Add the “osclisten” device to PeelCapture:

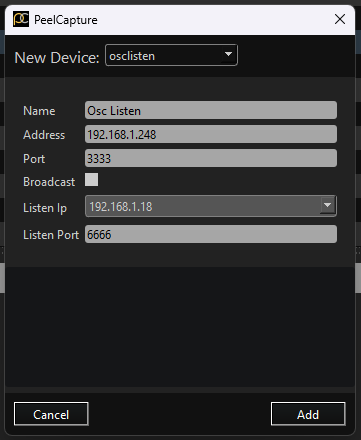

OscListen PeelCapture device properties

Set the address and port to the IP Address running touch OSC

Set the Listen IP and Listen port to the address on your PC to receive OSC messages back,

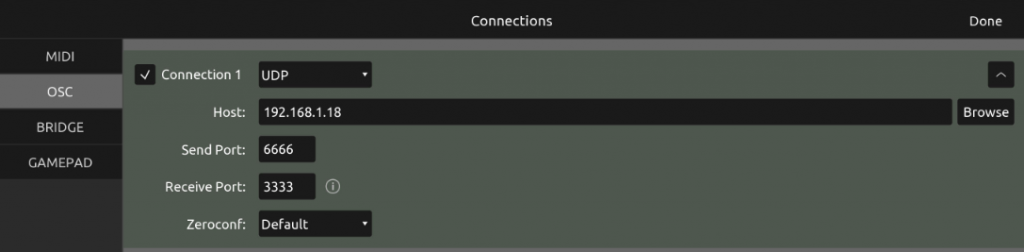

In TouchOSC, Select “OSC” from the Connections menu:

Set the Host address to match the listen Address in PeelCapture
Set the Send Port to match Listen Address in PeelCapture
Set the Receive Port to match the Port value in PeelCapture

PeelCapture will send the following commands:

/peel/transport/recordingTrue / False
/peel/transport/playingTrue / False
/peel/shotdetail/shotstring
/peel/shotdetail/takestring
/peel/shotdetail/idstring
/peel/shotdetail/descriptionstring
/peel/shotdetail/notesstring
/peel/playback/takenamestring
/peel/shotlist/currentint
