PeelCapture – Device: Philips Hue

Use Case

This is used to change the color of Philips Hue smart light bulbs connected via a Philips Hue Bridge. Note: The Philips Hue Bridge is required to connect the lights to Peel Capture.

Help setting up the Philips Hue Bridge and Bulbs can be found here.

Video Tutorial

Written Tutorial

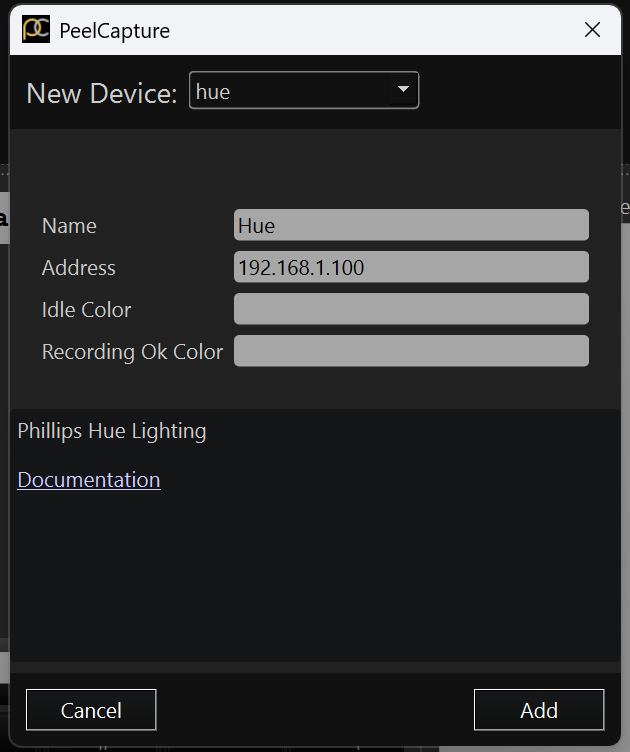

  1. Start adding the hue device to show the window below.

2. Find the IP address: Using the IOS or Android app, navigate to Settings → My Hue System → Your Bridge Name → IP-address. Input this IP address into the Peel Capture device add window.

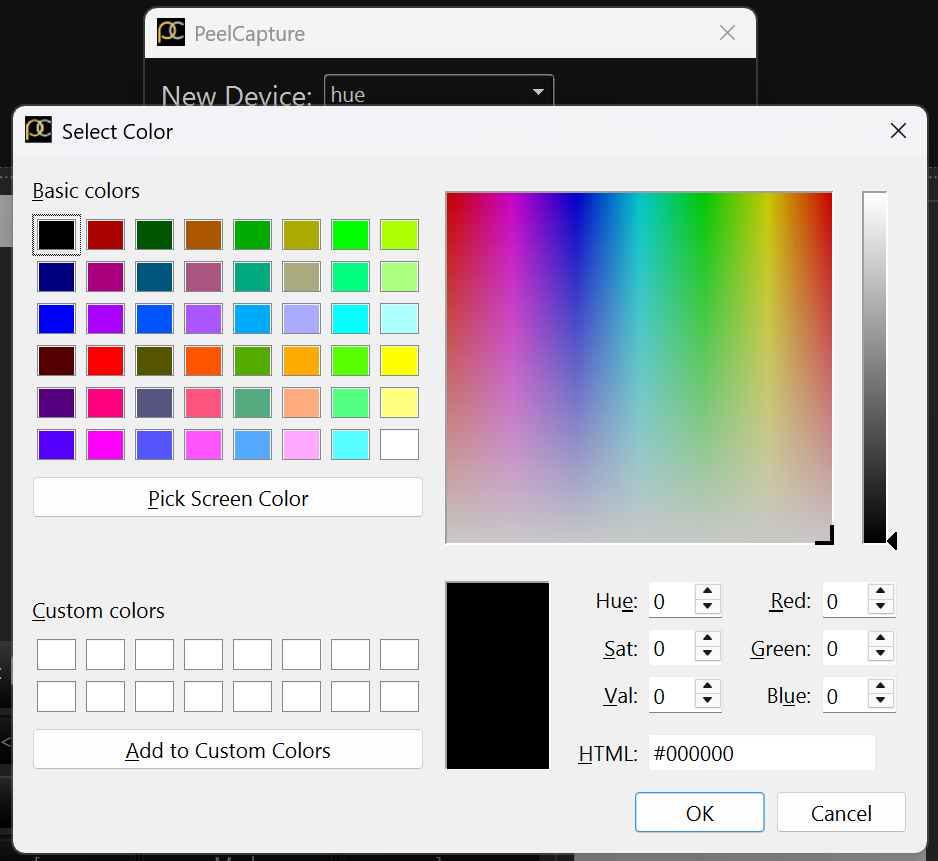

3. Set the Idle and Recording OK Color. Idle will set the default color and Recording Ok will set the color of the lightbulbs connected to the bridge while recording. You can select the colors of the lights in the window shown below.
